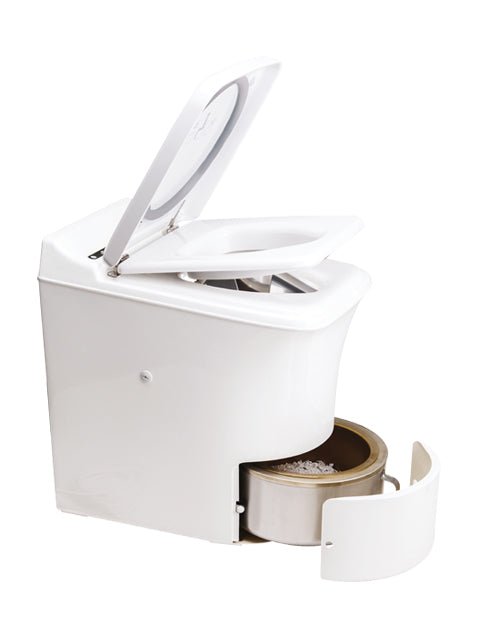

Cinderella® Freedom Incineration Toilet

About Our Product

Designed and manufactured in Norway for over 25 years, Cinderella is the only UL and NSF certified gas toilet in North America. Cinderella - like us here at Off-Grid Distribution™ - are a family-owned company that is environmentally conscious and dependable. Emissions tests are so low on these units, they are considered non-pollutant.

The Cinderella Freedom uses propane gas as an energy source to conduct the incineration process - making it perfect for off-grid applications! The fuel consumption on average is 0.45 lb/hr (0.2 kg/hr) or up to 180 grams per use and the power consumption is around 1.3A per incineration. Most customers average 75 flushes per 20lb tank. This unit runs at 9260 BTU/Hr and requires a connection to a 12v 10A(minimum) DC power supply to operate the control board, display screen and  fans. There are few different ways to power your unit; please see examples below:

• 12v AGM or flooded deep cycle battery

• 12v LiFePO4 battery

• The house/home 12v battery bank directly

• A portable battery pack with 12v output

• 12v Step down converter if connected to a larger voltage battery bank (ie: 48v>12v or 24v>12v)

• 120vAC to 12vDC adapter - we typically recommend the Samlex SEC-1223 or SEC-1235

Included

• Freedom incineration toilet

• User manual and Installation manuals

• 100 x Cinderella Original Bowl Liners

• 1 x Fresh Air Intake Valve

• 1 x Chimney Cap

Easy To Use

Cinderella incineration toilets are easy to use, and the Cinderella bowl liners safely transport the waste to the incineration chamber. This keeps the toilet hygienic and clean, compared to other options available on the market. Simply lift the lid and seat ring. Place an original Cinderella bowl liner in the bowl and put the seat back down. Use the toilet as you would any toilet and close the lid when you are done. Press the “flush button” and the bowl liner, with its contents, is released into the incineration chamber below. The toilet is now ready for use and the process as described can be repeated.

Installation

The most important prerequisite for a well-functioning toilet is correct installation. We always recommend the gas supply be connected and tested by a specialist in accordance with your local codes and regulations. Since the unit is propane fuelled, it is required to be vented using UL-S636 pipes. You can source these locally however, Cinderella provides everything you would need in their specially designed  Cinderella Freedom Installation Kit. This comes with 4"x 36" UL-S636 pipes (5), 5 x connector rings, 3 x wall mounts with 4 x pipe clamps and ball valve syphon for condensate drainage from the included male/ female 87º elbow with condensate drain.

Please note: The Cinderella Freedom and Comfort incineration toilet models are designed specifically for stationary applications such as cabins & homesteads exclusively and are not approved or intended for any mobile application. Warranty will be void if the installation requirements are not met. Customers looking to purchase a UL certified incineration toilet designed for mobile applications should check out the new Cinderella Travel HERE.

Features

• Perfect for areas where gas is preferred or where no mains power is available

• Requires 12V DC, propane gas supply, and inlet/outlet air

• A high quality product made in Norway

• Easy to use

• Informative LCD display with 7 languages

• Simple emptying of ash container

• A total waste solution, no after-handling

• Capacity: 3-4 visits per hour

• No water supply or installation of indoor / outdoor tank required

• Reliable operation

• No odors

• 3-year warranty

Specifications

• Height: 23 5 ⁄ 8 in. (600 mm)

• Seat height: 21 1 ⁄ 4 in. (540 mm)

• Width: 15 3 ⁄ 8 in. (390 mm)

• Depth: 23 1 ⁄ 4 in. (590 mm)

• Weight: 75 lbs. (34 kg)

• Capacity: 4 visits per hour

• Standby Power Consumption: 0.005 Amp

• Power consumption (incineration): 1.3 Amp

• Gas consumption: 140-190g per incineration.  Most customers average 75 flushes per 20lb tank.

• Gas: Propane (20-50 mbar / 8-20" W.C)

• Electrical power supply: 12V DC / 10 Amp (11–14.4V)

• Maximum burner effect: 9260 BTU/hr (2.87 kW)

Downloads

• Cinderella Brochure

• Cinderella Freedom Product Manual

SALES REGION DISCLAIMER

Only sales within the states of Oregon and Washington are permitted. For sales in other regions, please reach out to your local Cinderella dealer.

CINDERELLA WARRANTY

As your local authorized dealer, Further Supply Co fully supports our customers and provide all technical & warranty support.

What does this Warranty cover?

This warranty covers defects in materials or workmanship in your Cinderella Incineration Unit on the terms, for the period and subject to the exceptions set out below.

What does this Warranty not cover?

This warranty does not cover normal wear and tear or damage caused by accidents (including fire, floods, hurricanes or Acts of God or nature), abuse, misuse, failure to follow manufacturer directions or improper maintenance. Consequential and incidental damages are not recoverable under this warranty.

How long does the Warranty apply?

This warranty lasts for a period of three (3) years from the original date of purchase.

If you submit a valid claim under this warranty, Cinderella Ltd. will either repair, replace or refund the purchase price of your Cinderella Incineration Unit, at its sole discretion.

*See here for additional warranty details

Cinderella Incinerating Toilet Support:

Please contact us at: info@furthersociety.co
